    Board Layout and Features

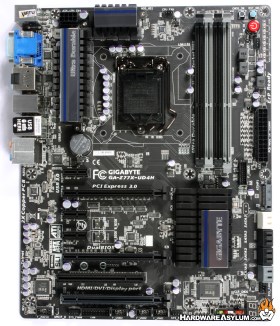

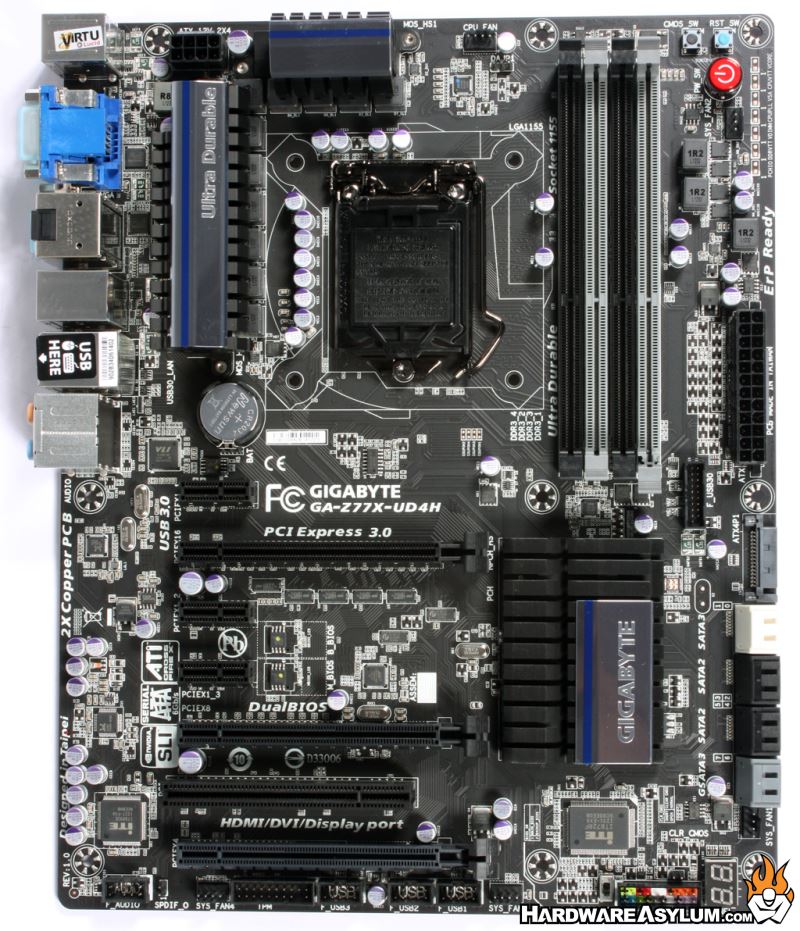

    The new standard styling for Ultra Durable motherboards is to have a matte black PCB and let the accent colors show on the various heatsinks.  For the UD4 the accent color is a dark electric blue with everything else following a black grey theme.

    Expansion slots still follow the black color scheme and are unchanged from previous designs.  You may notice the paddle style PCI Express card locks, for a mainstream motherboard these work great though still have a soft spot for the side clip type as they tend to be easier to operate.

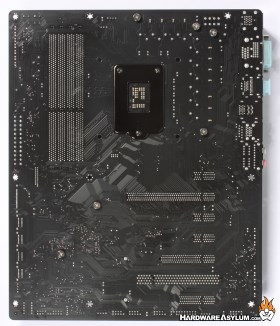

    Flipping a motherboard over can tell you a lot about its construction.  Here we can see that the back of the motherboard is virtually devoid of any surface components and features only minimal circuitry.

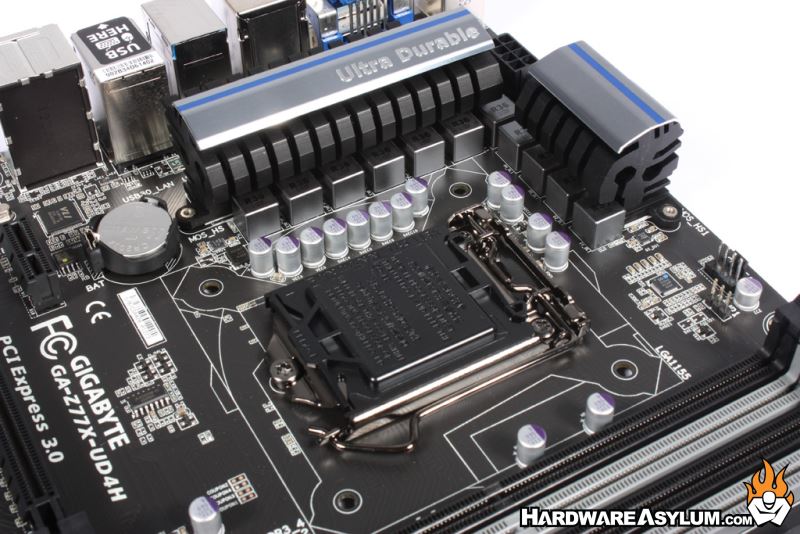

    Moving to the CPU we can see the dark chrome CPU socket hardware positioned next to the array of PWM components.  One of the first things to be downsized on a mainstream motherboard is the size of the power delivery system and the Z77X-UD4H will not disappoint.  The board features an 8 phase PWM design comprised of full driver MOSFET circuits for great power efficiency.

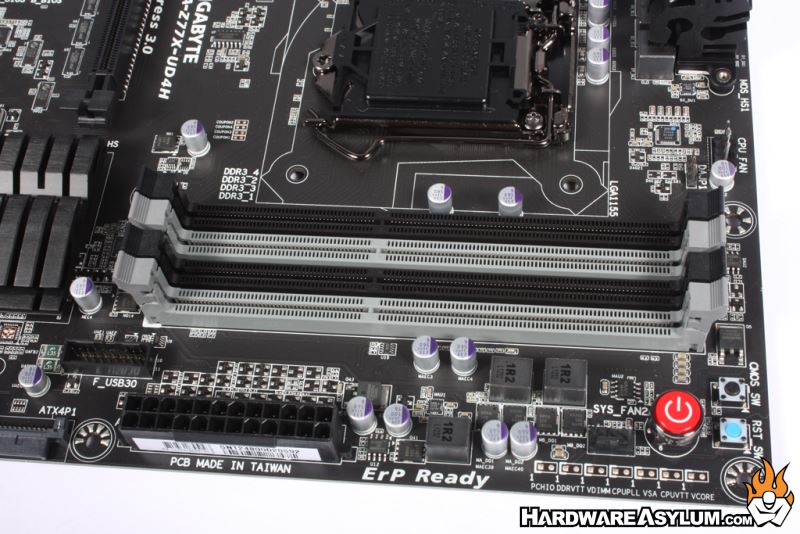

    Dual channel memory comes standard on the Sandy Bridge and the Z77X-UD4H supports DDR3 modules up to 1600Mhz with a maximum of 32GB usable.  Higher speed modules are likely supported including the popular 2133Mhz and various SOC modules.  24pin ATX power is located in the traditional location near the upper edge of the motherboard and out of the primary airflow.

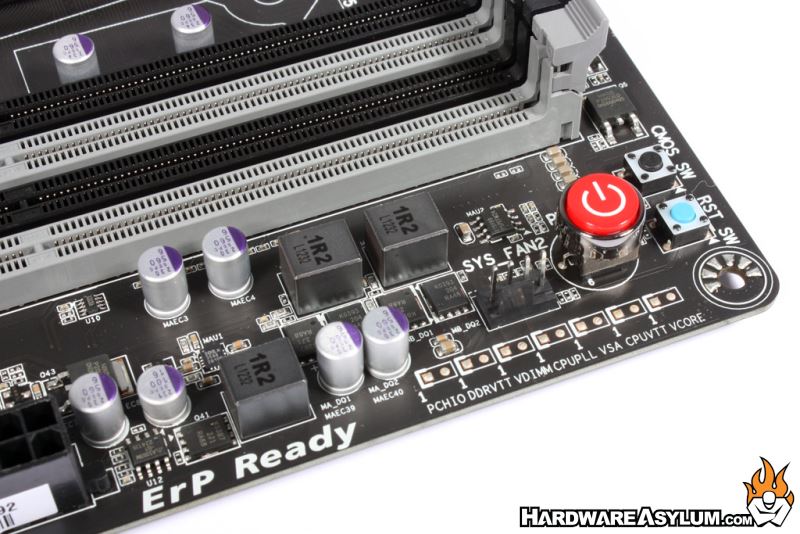

    A great new feature found on the Z77X is the inclusion of some benchtop controls including power, reset and CMOS clear.  These come in handy when the motherboard is used outside of a chassis or when you are troubleshooting an issue.  Another great feature is the ability to check the various system voltages in real time, and you can do that using the test pads located under the power button.

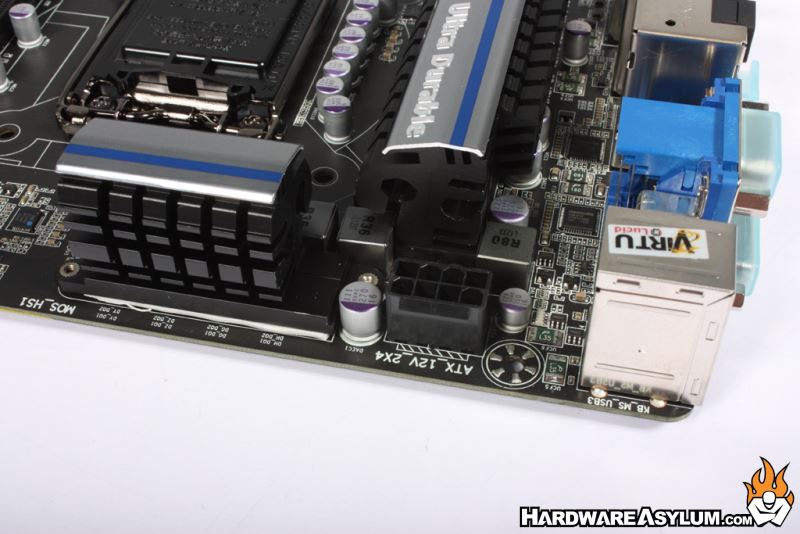

    Behind the PWM cooler you'll find the 8 pin CPU power connector with plenty of access space around the plug.
