  • Quantum Force P67 Rattler Motherboard Review
  • Quantum Force P67 Rattler Motherboard Review

    Author:
    Published:

    Benchmark Configuration

    The system as it was tested
    Foxconn Quantum Force P67 Rattler P67 Chipset
    Intel Core i7 2600K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
    Cooler Master V6 GT Heatsink
    1x nVidia GTX 580
    2x GSKill RipjawsX PC2133 4GB DDR3 (9-10-9-28)
    Western Digital VelociRaptor 150gb SerialATA 10000RPM
    LG 20x Super Multi GSA-H55L
    Corsair HX 850 Watt PSU
    Windows 7 Ultimate 64bit
    Reference System
    Sapphire Pure Black P67 P67 Chipset
    Intel Core i7 2600K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
    Custom Watercooler Danger Den Waterblock
    1x nVidia GTX 580
    2x Corsair Dominator GT PC2000 6GB DDR3 (7-8-7-21)
    Western Digital VelociRaptor 150gb SerialATA 10000RPM
    LG 20x Super Multi GSA-H55L
    Corsair HX 850 Watt PSU
    Windows 7 Ultimate 64bit
    Reference System
    Gigabyte GA-P67A-UD7 - P67 Chipset
    Intel Core i7 2600K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
    Custom Watercooler Danger Den Waterblock
    1x nVidia GTX 580
    2x Corsair Dominator GT PC2000 6GB DDR3 (7-8-7-21)
    Western Digital VelociRaptor 150gb SerialATA 10000RPM
    LG 20x Super Multi GSA-H55L
    Corsair HX 850 Watt PSU
    Windows 7 Ultimate 64bit

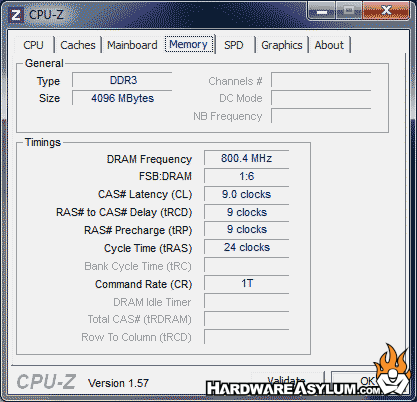

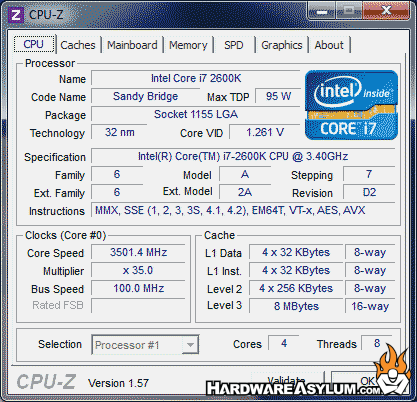

    CPU-Z
    Our old motherboard testing suite was compiled to expose differences in chipset design.  In the beginning this worked very well for us but as time went on we realized that very little effort spent to test the other aspects of the motherboard.  Now with the advent of an IMC and PCI Express being moved to the processor we found ourselves needing to improve our testing procedure and find new ways to determine actual performance and quality of the boards we review.  Because of this we will be rolling in some new tests and saying good bye to some old friends.

    Aside from the new standard tests it will be business as usual with out of box testing first followed by overclocking results.  This is assuming the system allows overclocking.
