Sama V60 Gaming Build and Review

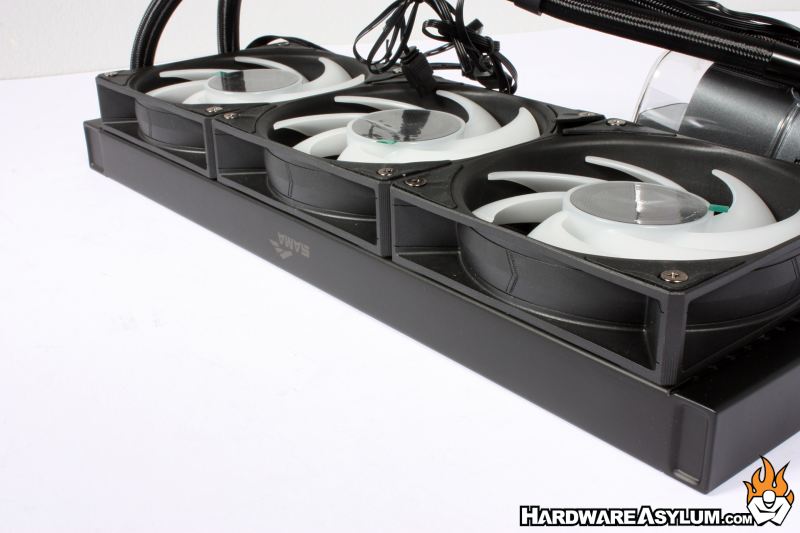

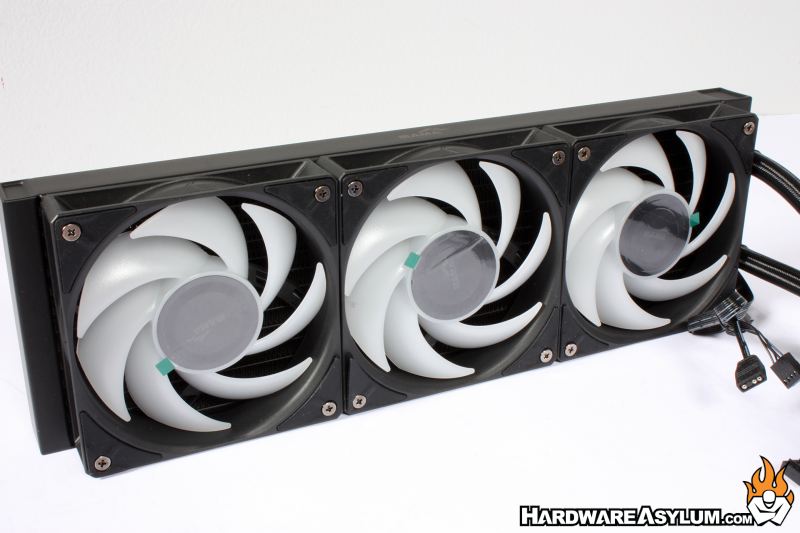

No modern build would be complete without a decent AIO watercooler.  The SAMA L70 is ready to run directly out of the box.  Three 120mm fans are pre-installed and feature a daisy chain power and led writing system that keeps everything nice and tidy.

The fan blades are quite a bit thicker than I would have expected but follows the high-pressure blade design making them a good match for the 360mm radiator.

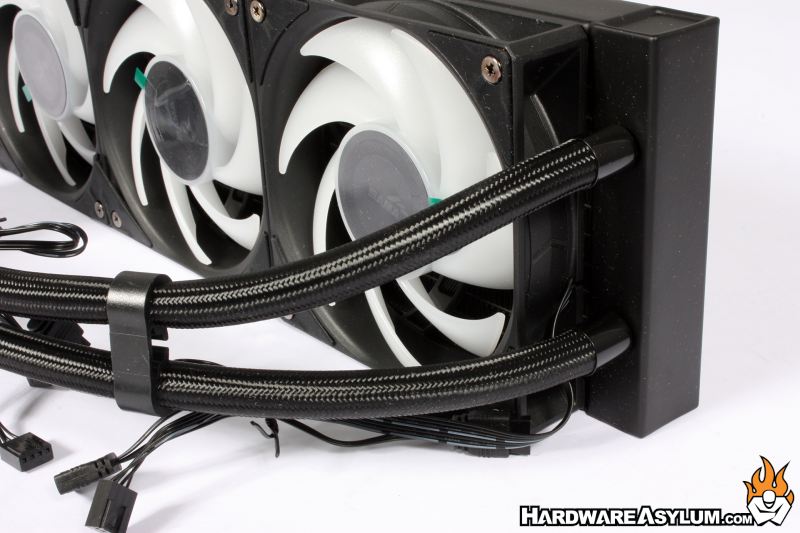

Hoses are cloth braided and feature a rather thick rubber hose design to prevent kinks.  Sadly, it also makes them difficult to run but can be muscled in place without too much trouble.

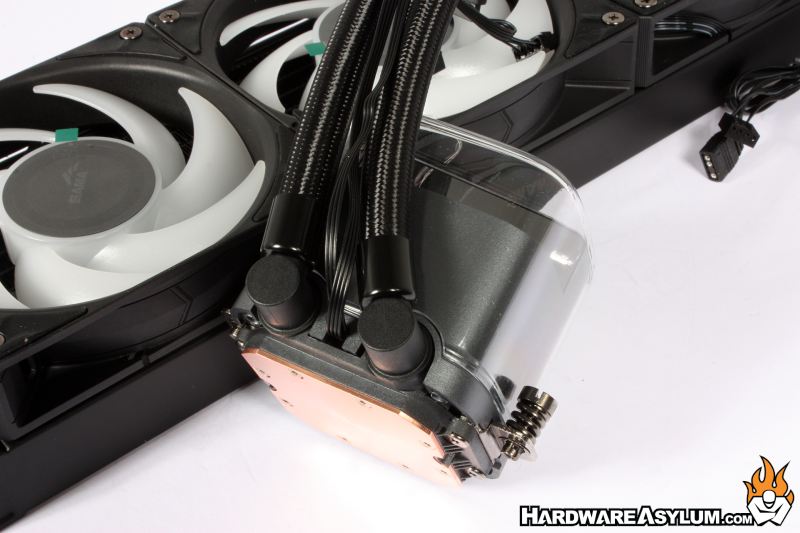

The pump block is taller than I would have expected with a nicely sized coldplate and clear plastic cover over the entire assembly.  Mounting screws are directly attached and designed to work with the universal mounting system.

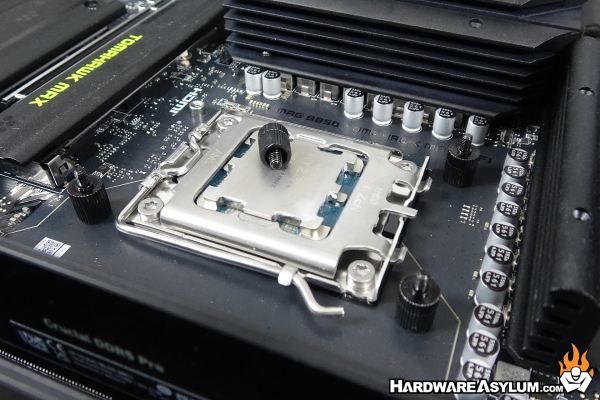

Mounting screws feature a dual ended design, which is common for a universal mounting system though I am impressed with the void around the threaded screw that will fit directly over the attached back plate on AMD motherboards.  The screw will snug up nicely against the motherboard PCB.
