    Benchmark Configuration

    The system as it was tested
    Gigabyte GA-Z77X-UD3H - Z77 Chipset
    Intel Core i7 3770K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
    Thermaltake Water 2.0 Performer
    1x nVidia GTX 580
    2x GSKill RipjawsX PC2133 4GB DDR3 (7-10-7-27)
    Western Digital VelociRaptor 150gb SerialATA 10000RPM
    LG 20x Super Multi GSA-H55L
    Thermaltake Toughpower Grand 1050 Watt PSU
    Windows 7 Ultimate 64bit
    Reference System
    EVGA Z77 FTW - Z77 Chipset
    Intel Core i7 3770K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
    Thermaltake Water 2.0 Performer
    1x nVidia GTX 580
    2x GSKill RipjawsX PC2133 4GB DDR3 (7-10-7-27)
    Western Digital VelociRaptor 150gb SerialATA 10000RPM
    LG 20x Super Multi GSA-H55L
    Thermaltake Toughpower Grand 1050 Watt PSU
    Windows 7 Ultimate 64bit
    Reference System
    Gigabyte Z68X-UD3H-B3 - Z68 Chipset
    Intel Core i7 2600K (3.5Ghz) Quad Core 4 x 256KB L2 Cache 8MB L3 Cache
    NZXT Havik 140
    1x nVidia GTX 580
    2x GSKill RipjawsX PC2133 4GB DDR3 (9-10-9-28)
    Western Digital VelociRaptor 150gb SerialATA 10000RPM
    LG 20x Super Multi GSA-H55L
    Thermaltake Toughpower Grand 1050 Watt PSU
    Windows 7 Ultimate 64bit

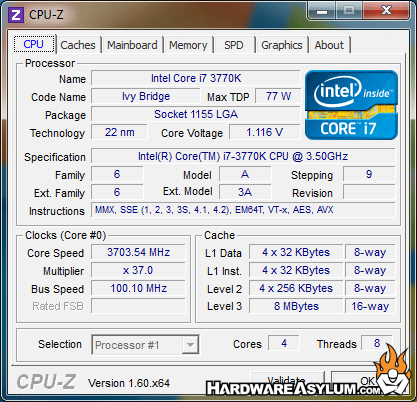

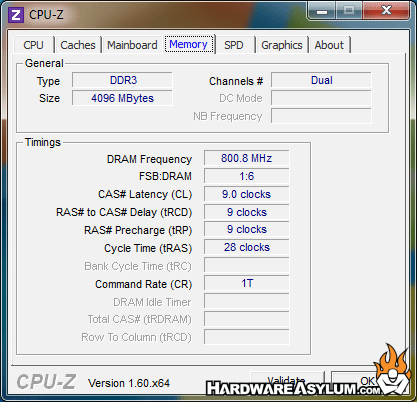

    CPU-Z
    Our motherboard testing suite has been compiled to subject the system to a variety of different scenarios that help uncover some of the subtle differences in motherboard design.  Normally these differences are driven by the processor and BIOS programming but with the advent of an IMC and PCI Express moving to the CPU we have discovered that raw performance numbers are virtually identical across the systems.

    Our new approach is to look at total system performance and minimize the variances.  The results will tell us how the system responded as a total package and also give us something to use in our comparisons.
