  • Reeven Ouranos RC-1401 Heatsink Review
  • Reeven Ouranos RC-1401 Heatsink Review



    The Reeven Ouranos is designed for Intel Socket LGA2011 / 1156 / 1155 / 1150 and AMD processors. Here is an overview of the system and testing methodology.

    The system as it was tested

    Asus P9X79 - X79 Chipset
    Intel Core i7 3960x (3.3Ghz) Hex Core 6 x 256KB L2 Cache 15MB L3 Cache
    Reeven Ouranos  (Single / Dual Fan)

    The CPUID System Monitor was used to obtain and record system temperature data and being that this is a quad core processor we need something that will work across all of the cores at once.  For this task we're using a new version of Prime95 (p95v255a) that will allow you to spawn (n) instances to test with.

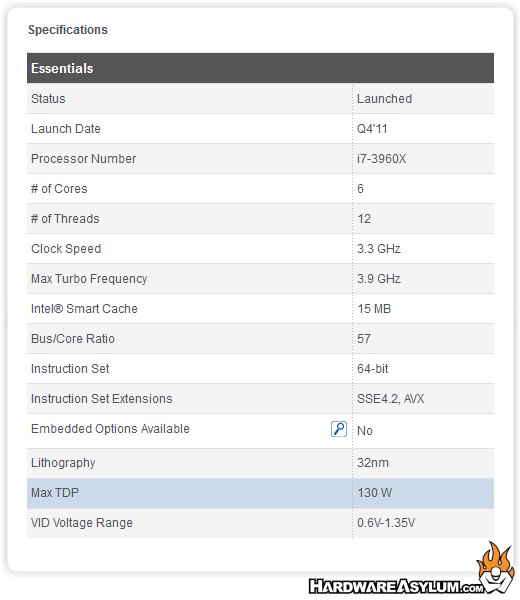

    Editors note: Even though the Windows 7 task manager reported 100% processor usage we could never attain a 100% of the rated heat output as documented by Intel (see below) when using Prime95 as a basis for that heat production. Knowing this we ran the stress test until the maximum temperature was attainted and stabilized.

    Other things to consider when judging software induced heat output.
    a) Clock throttling by the processor at high temperatures.
    b) Normal software isn't designed to produce maximum heat output.
    c) Variances of cooling temperature.
    d) Variances in CPU load.
    e) Inaccuracies in thermal diode readouts.
    Of course the list goes on..

    Our testing methodology is aimed to provide a real world look into this heatsink given the test system provided.

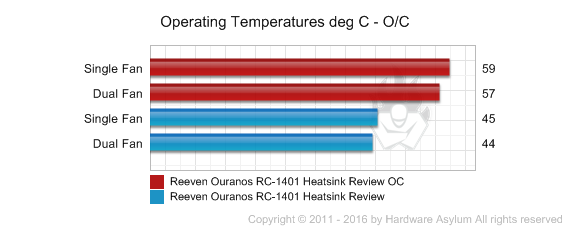

    Default Speed

    A C/W rating can quickly be calculated using this formula.

    C/W = (CPU temp - Ambient temp)/(Variance(%) * CPU Watts)
    Allowed variance for this test = 85%
    CPU Watts = 130W

    0.19 C/W = (45C - 24C)/(.85(130W))


    For this next test the CPU speed was cranked up to 4.6Ghz and the test was re-run.

    To calculate a new C/W rating for this test we will need to factor in the increased processor wattage. The formula and constants for this are listed below.

    ocC/W = dCPU Watts * (ocMhz / dMhz) * (ocVcore / dVcore)2
    ocMhz = 4600
    dMhz = 3300
    ocVcore = 1.375
    dVcore = 1.2
    The variance still applies for our C/W calculation
    Allowed variance for this test = 85%
    CPU Watts = 238W

    0.17 C/W = (59C - 24C)/(.85(238W))

    Benchmark Conclusion

    In our heatsink and waterblock tests we don't really focus on overall load temperatures but rather how well the product can remove heat given a specified heat load. Since this is a real world testing method we need to take into consideration real world variables and estimate tolerances. This is why we normally only apply 85% of the total wattage output to our heat calculations.

    The resulting C/W number is used to rate how efficient a heatsink or waterblock is based on the given heat load. These numbers can be used to determine heat capacity, the larger the difference the less efficient the heatsink is. (aka not good for overclocking)

    Here we have a heatsink that can clearly handle more than our system can dish out.  All too often we find a rather pronounced variance between the default and overclocked temps which is sometimes good and sometimes bad.  For these tests you'll see that the resulting C/W numbers went down meaning that we have not even gotten close to the thermal limit of this cooler.

    It should be noted that our heat calculations where done using a single cooling fan and ran these tests with all fans spinning under the Asus Turbo PWM fan profile.  This profile is a little more aggressive than the default enabling them to spin up faster under load.

    Keep in mind these calculations are provided for demonstration purposes only and may not reflect the actual lab tested C/W rating, but we're pretty close.
