    Benchmarks - Overclocked

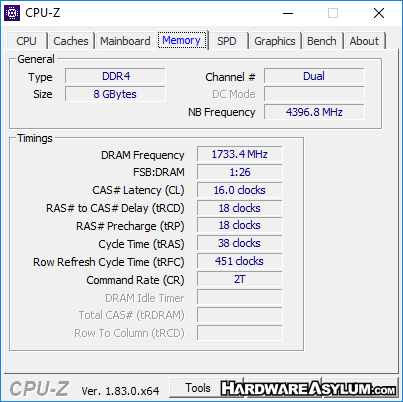

    As with all of our reviews, we pit the default speed system against the overclocked one in a head-to-head byte match.  The effective overclock for these tests is 5.2Ghz @ 52x multiplier.  To attain this overclock I set the performance profile to XMP, synced all cores to the same multiplier and adjusted it to 52x.  BCLK voltage adjustments wanted to set the processor to 1.4v which was actually not stable.  Reducing the voltage to a static 1.375v fixed the stability issues and never temperature spiked above 85c.  I wouldn’t say this is an optimized overclock and the processor has not been delidded so in a way it is very real-world.

    SiSoft Sandra
    Unreal Tournament 3
    Call of Duty 4 Modern Warfare

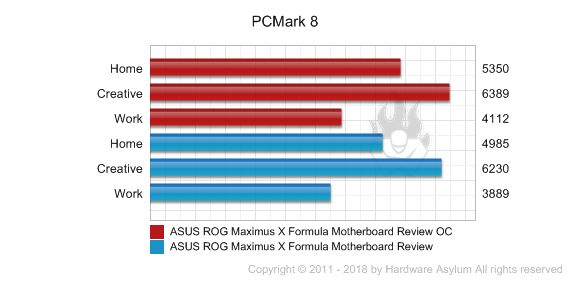

    Futuremark PCMark 8
    Futuremark PCMark 10
    Overclocking Conclusion

    To maximize system performance you have a couple options.  The first is straight multiplier overclocking or you can extract a little more by tuning the BCLK and memory settings.  This will increase overall memory bandwidth and make things faster overall.  Although with memory you can “buy” performance by simply buying faster modules and in doing so you not only get faster out of box performance but considerably more headroom if you choose to experiment with BLCK overclocking and tuning the memory controller.

    For most users I would fully expect a 5Ghz overclock with the Core i7 8700K.  You can run that speed without any voltage adjustments and it doesn’t really run all that warm.  Match that with a fast video card, premium storage, quality memory, a solid AIO watercooler and you’ll be set.

    One of the biggest gains I noticed is by simply syncing all of the CPU cores to the same frequency.  It really helped game performance with the side benefit of running hotter and drawing more power.  As the charts show, real world performance was a little flat unlike what you would see on the E-series procesors.
