  • Aorus Z390 Xtreme Waterforce Motherboard Review
  • Aorus Z390 Xtreme Waterforce Motherboard Review


    Benchmarks - Synthetic

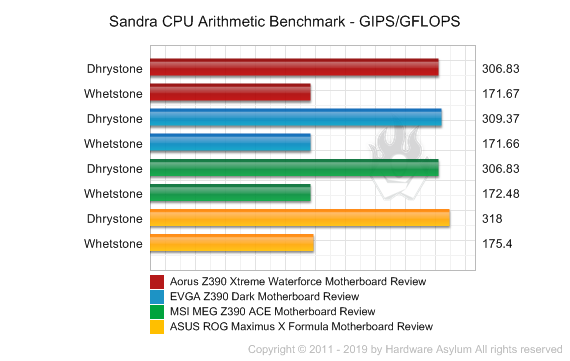

    SiSoft Sandra

    Sandra is a software collection of synthetic benchmarks that will give us a basic idea as to what a system is capable of. It should be noted that SiSoft numbers change depending on what hardware is being tested.  These were recorded using Sandra Professional Version 28.26.2018.11

    RightMark Audio Analyzer

    One of the most difficult things about doing reviews is finding some kind of common ground to establish a benchmark on so that when we say something is good our readers know it is based on something they can try themselves.  In the case of audio reproduction there are too many factors to consider such as hearing quality, sound equipment (speakers) and room dimensions so we are turning to the RightMark Audio Analyzer to give us a set of audio specs.  We will then use those numbers to determine what kind of audio quality you can expect.

    This test was performed using a loopback cable which is basically a jack that connects the analog line-out plug back into the analog line-in.  That way we can remove almost all of the variables and concentrate on what is actually being reproduced and recorded.

    Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.10
    Noise level, dB (A):  -103.1
    Dynamic range, dB (A): 100.1
    THD, %:  0.00215
    THD + Noise, dB (A):  -88.2
    IMD + Noise, %:  0.00447
    Stereo crosstalk, dB: -95.5
    IMD at 10 kHz, %: 0.00428
    General performance Excellent

    Color coding indicates good to bad, Bright green = Excellent - Bright Red = Poor - Black = Good

    Synthetic Conclusion

    Synthetic performance never really tells the entire story, but is a good indication of what the system would probably be capable of doing under the right conditions.  For this set of benchmarks three of the boards are Z390 with the fourth being Z370.  They are all using the same processor and memory combo so there should be very lilttle change between the systems.  I decided to keep the systems the same running the 8700K mostly for consistency sake and will be re-running them again later with the Core i9 9900K.

    The Rightmark audio benchmark is a great tool for exposing audio specs for the various chips and software used and read much like if you were buying an amplifier or sound system for your house.

    I am happy to report that we have another motherboard that has tested Excellent for their onboard audio solution.  Not even the dedicated or stand alone audio solutions can say that which is really quite impressive.  I'm not sure how the Gigabyte and Aorus designers pulled it off but Good Job!!
